HDPE HD5000S

  • GRADE: HD5000S
  • DENSITY:  0.954 g/cm³
  • Melt Flow Index: 0.8 gr/10min
  • PRODUCER: JAM
  • Packaging: 25 Kg

Description

The HD5000S is a high-density polyethylene (HDPE) resin, known for its exceptional properties suitable for various applications. It is characterized by its high tensile strength, flexibility, and resistance to impact, making it ideal for manufacturing products such as ropes, fishing nets, agricultural nets, tarpaulins, and woven sacks. These properties are due to their composition and the specific conditions under which they are processed.

  • Melt Flow Rate: 0.8 g/10 min at 190°C, indicating its viscosity and how easily it melts and flows during processing.
  • Density: 0.954 g/cm³, showing its compactness and weight per unit volume.
  • Vicat Softening Point: 125°C, which is the temperature at which the material starts to soften under load.
  • Tensile Strength @ Yield: 290 kg/cm², demonstrating its ability to withstand tension before permanent deformation occurs.
  • Tensile Strength @ Break: 390 kg/cm², indicating its maximum resistance to being pulled apart.
  • Elongation @ Break: >1000%, showing its capacity to stretch significantly before breaking.
  • Flexural Modulus: 12000 kg/cm², reflecting its stiffness and resistance to bending.
  • Notched Izod Impact Strength: 17 (P)* kg.cm/cm, highlighting its resistance to impact forces.

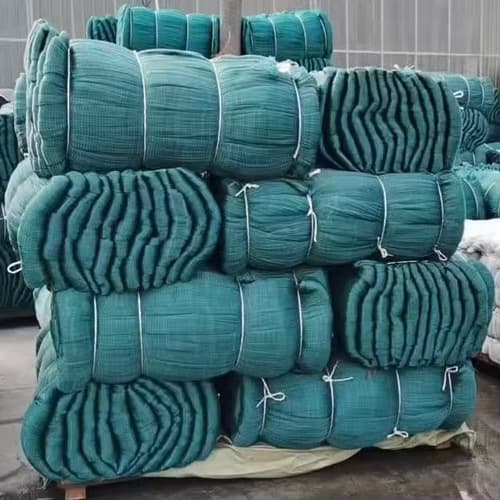

  • Commonly used for monofilament production, agricultural nets, tarpaulins, and woven sacks
Property Value Units Test Method
Melt Index 0.8 g/10min D1238
Density 0.954 g/cm³ D1505
Vicat Softening Point 125 °C D1525
Flexural Modulus 1100 Mpa D790
Tensile Strength at Yield 24 Mpa D790
Tensile Strength at Break 39 Mpa D638
H.D.T 75 °C D648
Notched Izod Impact @ 23 °C 400 J/m D256/A
