Medium-Density Polyethylene (MDPE)

In answer to the question, what is medium density polyethylene, it must be said Medium-Density Polyethylene (MDPE) is a polyethylene plastic with a density of between 0.926 and 0.940 g/cm³, placing it halfway between Low-Density Polyethylene (LDPE) and High-Density Polyethylene (HDPE) in terms of material properties. It offers a balance between strength and flexibility, with properties that embody some of the best qualities of both LDPE and HDPE.

Medium density polyethylene formula has the repeating unit of (C₂H₄)n, where C₂H₄ refers to ethylene and n denotes the number of repeating units.

Medium-Density Polyethylene can be produced through the physical combination of HDPE and LDPE, which allows us to combine their beneficial properties, thereby creating MDPE as a multi-faceted material. Catalysts such as Ziegler-Natta, metallocene, and chromium/silica are typically used in the production process of MDPE, catalyzing the polymerization and optimizing its functionality for the intended applications.

It is a middle-ground material within the polyethylene family of materials, with properties suitable for an extensive variety of applications in Medium density polyethylene sheet, packaging, piping, and more.

Stress Cracking Resistance: MDPE has a higher resistance to stress cracking compared to HDPE and is more resilient in stressful conditions.

• Impact Resistance: It has first-class resistance to impact and demonstrates excellent resilience from shock, shock resistance, and dropping resistance when transported in demanding conditions.
• Flexibility: It is more flexible than its counterpart HDPE, so it can easily be twisted around and take several shapes without breaking easily.
• Toughness: This offers a fine balance between stiffness and toughness, offering a sturdy yet adaptable material.
• Tensile Strength: It tensile strength ranges from 8 to 24 MPa (or 12.4-19.3 MPa as per the reference) which gives it the ability to bear stretching and rupture when in tension.
• Break Elongation: It has high break elongation of between 50% to 60% or 100-150% or 300% based on the reference, which indicates its ability to be extended way before it breaks.
• Less Notch Sensitive: Contrary to HDPE, MDPE is less notch sensitive, implying that it resists cracking or failure when put under stress at certain points.
• Lower Hardness and Rigidity: It is softer and less rigid than HDPE and hence more suited to be used in applications requiring a softer product.
• Ductility: It is highly ductile, i.e., it can be stretched or deformed without breaking.
• Low Friction: The product is low on friction, making it best suited to be used in applications where sliding or low resistance surfaces are required.
• Creep under Pressure: Creep, material deformation with time under constant pressure, is found in MDPE but can be averted through the inclusion of short fibers.

1. Range of Melting Temperature: The medium density polyethylene melting point is mixed, typically 126°C to 135°C or 120 to 180°C or 220 – 260 °C. Vicat softening point is also mixed, from 99°C to 124°C depending upon the source.
2. Thermal Resistance: The thermal properties are good in MDPE, and its melting temperature is less than HDPE and hence used for applications needing reduced processing temperature.
3. Maximum Operating Temperature: The maximum operating temperature of MDPE is about 50°C, above which the physical Medium Density Polyethylene properties can deteriorate.

• Chemical Resistance: This possesses excellent chemical resistance and is best suited to be used in areas where it might be exposed to aggressive chemicals like acids, bases, and other chemicals.
• Outdoor and Moisture Conditions Resistance: The material is also resistant to outdoor conditions and moisture, thus making it suitable for application outdoors as well as in high-humidity places.
• Acid and Base Attack Resistance: It possesses effective acid and base attack resistance and that of reducing agents and oxidants, making it more durable under harsh conditions.
• Low Water Absorption: It is water-absorbing low, being resistant to swell or degrade with exposure to moisture.

• Excellent Optics for Printing: This possesses good optics, ensuring it is an ideal material used in packaging films that need premium printing.
• Non-Conductive: It is a non-conducting material such that it cannot conduct electricity, a property very beneficial for applications in electrical insulation.
• Heat Fusible: It is heat fusible, i.e., it can be welded or heat joined, a process typical in pipeline fabrication as well as other applications involving permanent bonding.

Medium-Density Polyethylene is economically viable compared to a majority of other plastics and is, as a result, an excellent choice for large-volume manufacturing and cost-effective applications. It can be easily processed via various methods such as injection molding, blow molding, extrusion, and rotational molding, thus offering flexibility in production. This possesses a favorable balance between strength, rigidity, and toughness, hence being easily suited to a variety of industrial and consumer applications. It has very good stress cracking resistance, i.e., it resists well under stress over long periods. This resistance to long-term holds positions it very well for applications that involve continuous pressure or stress.

Medium-Density Polyethylene is highly resistant to a large range of chemicals, including acids, bases, and other solvents, making it well-suited for industrial applications and use in chemical processing.

MDPE’s impact resistance and resistance to environmental stress cracking make it suitable for outdoor applications where materials undergo weathering, UV exposure, and physical stress. It is flexible, which makes it easy to install, particularly in MDPE pipes. Its flexibility reduces the number of joints, meaning fewer potential failure points. It is extremely resilient and can withstand severe conditions for many years, which makes it ideal for long-term applications like Medium density polyethylene pipe and packaging.

It is relatively lightweight, which makes its transport and installation operations convenient, particularly for large volumes of material, reducing cost and labor. As a recyclable plastic, Medium-Density Polyethylene supports sustainability by being recycled for use in a multitude of applications, reducing the environmental footprint. It is also nontoxic and safe for humans and the environment and can find application in food packaging and other consumer products. It is less notch-sensitive than HDPE, which means it is less prone to cracking due to local stress concentrations, making it more durable and long-lasting.

Here are some of the most common Medium density polyethylene uses:

Pipes and Fittings:

Medium-Density Polyethylene (MDPE) is often used in gas pipes (usually yellow colored in some regions) due to its pressure cracking resistance as well as chemical resistance. Medium density polyethylene pipes, usually blue or black, are most commonly used in water distribution pipes due to their flexibility as well as long-lasting durability. It is used in wastewater piping and drain pipe where chemical and moisture resistance is crucial.

Medium density polyethylene pipes are also employed in carrying chemicals, oil, and compressed air with an extensive resistance against chemical degradation. The stress cracking resistance of this is suitable in the case of sewerage and drain systems. The flexibility of it enables its use in irrigation systems as they are less affected by environment-based stress. The material is utilized to clad steel pipes with anticorrosion and mechanical shielding.

Medium density polyethylene pipes are used extensively for underground installations, delivering long-lasting, strong solutions for essential infrastructure. Push-fit fittings are utilized for residential and commercial plumbing installations due to their ease of installation and maintenance.

Films and Packaging:

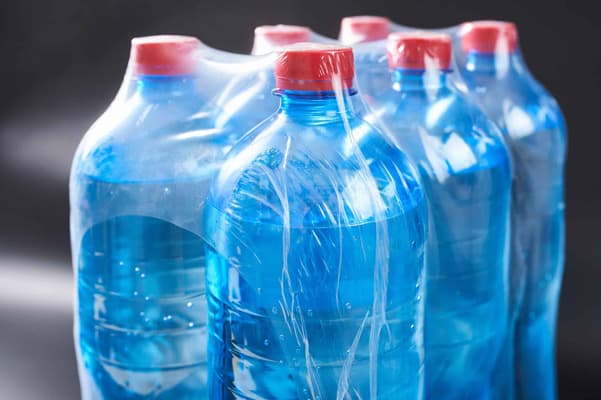

Medium-Density Polyethylene is used in shrink film packaging, which provides it with strength and a clean finish upon the application of heat. It is used in the manufacture of carrier bags, sacks, milk pouches, and silage bags. It is used in automatic packaging films, lamination films, and over-wrap films for goods. Its strength and flexibility make it an ideal material for the manufacture of stand-up pouches and protective cases for various consumer goods.

Molding:

Medium density polyethylene uses in blow molding to produce products such as bottles, containers, tanks, water butts, and oil tanks. It is also suitable for injection molding uses, producing products such as fittings, valves, small containers, and screw closures. That is used in rotational molding to produce large, hollow goods such as tanks, containers, playground equipment, storage tanks, and large bins. Additionally, it is also used in compression molding to manufacture medium to large-sized parts with an inexpensive manufacturing process.

Coatings and Insulation:

Medium-Density Polyethylene is used to coat wires and cables for insulation and protection from exposure to the environment. It is commonly used as an insulating material due to its low thermal conductivity and excellent chemical resistance. This is used in rotational coatings to insulate and enhance the durability of various products.

Other Applications:

Medium-Density Polyethylene finds application in the production of a broad variety of plastic items and automatic packaging films because of its good balance of properties. It is utilized in the automotive sector for items like car bodies, fuel tanks, electrical insulators, and cable jacketing. This is widely utilized in plasticulture, producing nursery pots, fumigation films, and plant and soil coverings to enhance agricultural efficiency. Additionally, it also exists in home consumer products such as toys, bottles, ice boxes, and other daily use products since it is non-toxic as well as long-lasting.

Medium-Density Polyethylene (MDPE) can be processed using a variety of traditional methods that allow the manufacture of an extensive array of products. The processes take advantage of MDPE’s overall flexibility in mechanical characteristics, including ductility, toughness, and process ability. Some of the most notable processing techniques are described below:

Injection Molding: Medium-Density Polyethylene (MDPE) is softened and pumped under pressure into a mold in injection molding to create complex parts with precise sizes. Injection molding is employed to create products like fittings, valves, and tiny containers.

Blow Molding: The process involves the heating of Medium-Density Polyethylene to a flexible state and then inflating it inside a mold to form hollow products such as bottles, containers, water tanks, and oil tanks. Blow molding is especially suitable for producing large, light, and uniform hollow parts.

Extrusion: Medium-Density Polyethylene is forced through a die to produce continuous products such as pipes, tubing, films, and sheets in extrusion. Extrusion is used primarily for the production of MDPE pipes used in sewerage, water, and gas networks and also films applied in packaging.

Rotational Molding: Rotational molding is used for the production of large hollow items by melting Medium-Density Polyethylene in a multi-axial rotatory mold. Rotational molding makes it easy to produce hard items like playground equipment, kayaks, and storage tanks.

Compression Molding: A calculated amount of Medium-Density Polyethylene is placed in a heat mold and compressed to form fittings or mid- to large-sized parts. Compression molding is used in the manufacture of parts that contain more complex geometries or higher strength requirements.

Medium-Density Polyethylene (MDPE) and HDPE (High-Density Polyethylene) differ primarily in density, strength, and rigidity. MDPE is lighter in density than HDPE and is therefore, more flexible and impact-resistant but less rigid and strong. HDPE, on the other hand, is denser, stronger, more rigid, and stress crack resistant and is thus applied in applications requiring toughness, such as rigid containers, pipes, and tanks. MDPE, nevertheless, is utilized in uses like packaging and gas piping that require superior impact resistance and moderate strength, e.g., squeeze bottles and films.

Compared to LDPE (Low-Density Polyethylene), Medium-Density Polyethylene is stiffer and denser, but LDPE is more flexible and has superior elongation properties. LDPE is softer with more molecular branching, causing it to possess lower tensile strength but be more flexible and stretchable. LDPE is typically used in applications such as plastic bags, cling films, and squeezable bottles, while MDPE finds application in items requiring moderate flexibility as well as additional stronger material properties, such as gas pipes and some packaging.

LLDPE (Linear Low-Density Polyethylene) is as flexible as LDPE but has greater tensile strength and crack resistance. It is produced by copolymerizing ethylene with a small amount of a comonomer, which produces a more linear molecule. This special structure provides LLDPE with improved puncture resistance, stretchability, and durability over LDPE, which makes it widely used in films, stretch wraps, and bags requiring a combination of flexibility and strength.

Medium-Density Polyethylene is fully recyclable, which contributes to its sustainability and reduction of environmental impact. It is assigned the resin identification code “2” under the recycling symbol, which indicates that it is part of the polyethylene family and can be recycled through the same processes as HDPE. Examples of Products Made from Recycled MDPE:

• Detergent bottles
• Recycling containers
• Picnic tables
• Doghouses
• Outdoor furniture and objects
• Plastic bags and bottles
• Bottles and other plastics like bins, containers, and garden products

Recycling Medium-Density Polyethylene maintains virgin plastic demand at a low level and saves more from landfills. The process supports the development of a circular economy, where the product is consumed less as raw material and recycled. Recycling MDPE minimizes the environmental footprint of production, promoting sustainability.

Medium-Density Polyethylene (MDPE) is a widely employed polymer in a variety of industries, including gas piping, packaging, and coating. Popular manufacturers of MDPE include popular companies like Dow, which produces Dow MDPE for industrial and commercial use. ExxonMobil is another large-scale manufacturer that specializes in the strength and performance of its products, while LyondellBasell is renowned for producing high-grade MDPE resins. These brands are defined by the high-tech and dependable product performance that is required by industries’ very particular applications like construction, packaging, and telecommunications. Shobeir Shimi is also a dependable supplier of MDPE, offering a range of high-quality commercial and industrial products. Dedicated to excellence, Shobeir Shimi provides innovative solutions that are created to meet the diverse requirements of industries and provide long-term performance and quality.
