- GRADE: EX5
- DENSITY: 0.947-0.951 g/ml
- MFR: 0.23-0.33 g/10 min
- Equivalents: SABIC -F00851,GM 9450 F
- HS Code: 39012000
- Packaging: 55*25 Kg shrink-wrapped wooden pallets
- PRODUCER: JAM, AMIRKABIR, MARUN, KERMANSHAH
HDPE EX5
Description
HDPE EX5, also known as SABIC-F00851 or GM 9450 F, is a high-density polyethylene (HDPE) characterized by its high molecular weight and copolymerization with 1-butene. This material is primarily utilized in applications requiring durability and resistance to stress, making it suitable for various film and packaging products.
- Density: 0.949 g/cm³
- Melt Flow Index (MFI): 8 g/10 min (at 190 °C and 21.6 kg)
- Tensile Strength: High tensile strength, allowing it to endure substantial stretching without failure.
- Toughness: Exhibits good toughness, meaning it can absorb energy and deform without fracturing.
- Rupture Resistance: High rupture power, essential for applications subjected to sudden impacts or pressure.
- Packaging Materials:
- Food Packaging: Suitable for freezer bags, food and fruit bags, and medical products due to its compliance with food contact regulations.

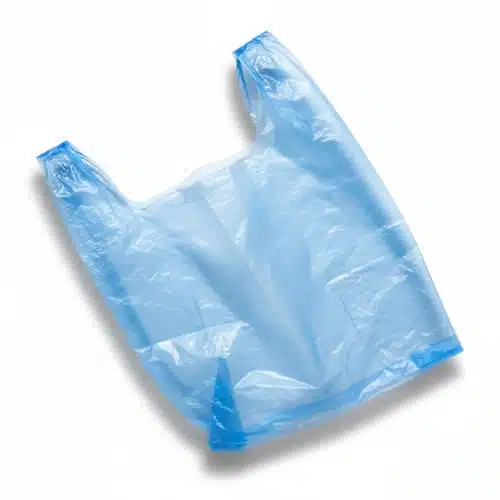

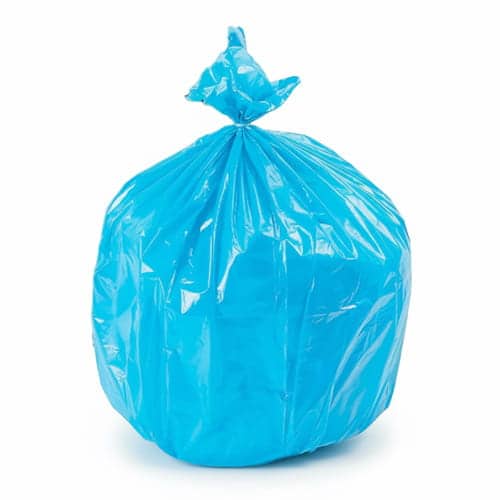

- Carrier Bags: Commonly used for shopping and garbage bags.
- Wrapping Films: Ideal for wrapping films and sheets, providing protection and storage solutions.
- Medical Products:

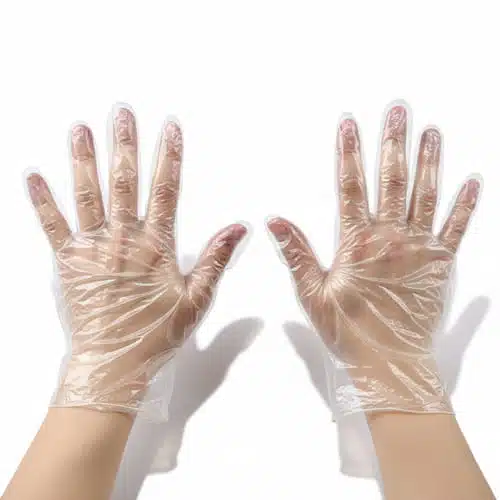

- Used in disposable gloves and medical gowns, ensuring hygiene and safety in healthcare settings.
- Film Production:
- Excellent for blown films, offering paper-like quality suitable for counter bags and other film products that require durability and flexibility.
- Antioxidant/Process stabilizer
- Lubricant (processing aid)/ acid scavenger
Global oil prices fluctuate regularly, which affects the cost of products like Hdpe ex5. As a result, we do not have a fixed price for this item. To get the most current pricing information, please contact us directly. Should you have any questions regarding the prices, please contact us through WhatsApp for a prompt response.
The recommended processing conditions include:
- Melt Temperature: 200 – 230 °C
- Film Thickness: Typically between 10 – 200 μm
| Test/Composition | Typical Value | Unit | ASTM Method |
| Density | 0.949 | g/cm3 | ISO1183 |
| Fish Eye Note | <3 | note | Internal |
| FRR 21.6/5 | 29 | h | |
| MFR 190°/21.6 | 8.0 | g/10min | ISO1133 |
| MFR190°/5 | 0.28 | g/10min | ISO1133 |
Additional information
| Application |
|---|
